High-conversion product pages demand crystal-clear visuals. 3D packaging mock-ups let you showcase every panel, foil stamp, and dieline without printing a single prototype or booking a studio.
In this upgraded tutorial, you will master a one-click pipeline that combines Adobe Dimension for lightning-fast setup and Substance 3D Stager for GPU-accelerated path tracing. The result: photoreal 3D packaging mock-ups optimized for U.S. e-commerce giants like Amazon, Shopify, and Walmart Marketplace.
Table of Contents
◉ Definition & Context ◉ Key Benefits ◉ Real-World Examples ◉ Dimension vs Stager ◉ Step-by-Step Workflow ◉ Pro Tips & Automation ◉ FAQs ◉ Conclusion
Definition & Context
3D packaging mock-ups are virtual product renders that mimic studio photography. Adobe supplies parametric cartons, jars, pouches, and cans that accept 2D artwork in one drag-and-drop action. Dimension focuses on speed; Stager adds physically based materials, ray-traced global illumination, and USD interoperability.
Why 3D Mock-ups Beat Traditional Photography
• Zero reshoot fees when SKUs refresh flavor, weight, or language.
• Unlimited camera angles for hero, beauty, and 360° spins.
• Instant seasonal refresh—swap backgrounds for July 4th or Black Friday.
Key Benefits
Advantages of the Dimension + Stager Stack
• One-click label projection : Smart UV maps eliminate seams automatically.
• Adobe Stock integration : Pull 3D templates without leaving the viewport.
• GPU path tracing : Metal / OptiX acceleration cuts render time by 80 %.
• E-commerce presets : Export profiles comply with Amazon’s 2560 px rules.
Current Limitations
• Flexible pouches lack cloth simulation—add wrinkles in Photoshop.
• Windows 10 or macOS 12 minimum; integrated GPUs lag.
• Stager billed separately from Creative Cloud All-Apps.
Real-World Examples
• Beauty startups : Fenty Beauty tested 40 carton colors in 24 hours for Sephora.
• Crowd-funded gadgets : PebbleBee previewed eco-paper wraps before tooling dies.
• C-stores : Trader Joe’s rotates seasonal cereal art weekly, no photography backlog.
Dimension vs Stager vs Blender
| Feature | Dimension | Stager | Blender |
|---|---|---|---|
| Learning Curve | Beginner | Intermediate | Advanced |
| Ray Tracing | CPU only | GPU + CPU | GPU Cycles |
| Template Library | Core | Extensive | Community only |
| Subscription Cost | Included | $49.99 mo | Free |
Step-by-Step Workflow
1 — Prepare Artwork in Illustrator
• Convert fonts to outlines; expand strokes to shapes.
• Use CMYK if you plan print; RGB for digital-only SKUs.
• Export transparent PNG at 300 DPI or layered PSD for masks.
2 — Select a 3D Template
• Launch Dimension > Starter Assets › Packages.
• Pick Carton_Straight_Tuck for cereals; Bottle_PET_500ml for beverages.
• Drag the model into the scene. Scale via on-screen gizmo.
3 — One-Click Label Placement

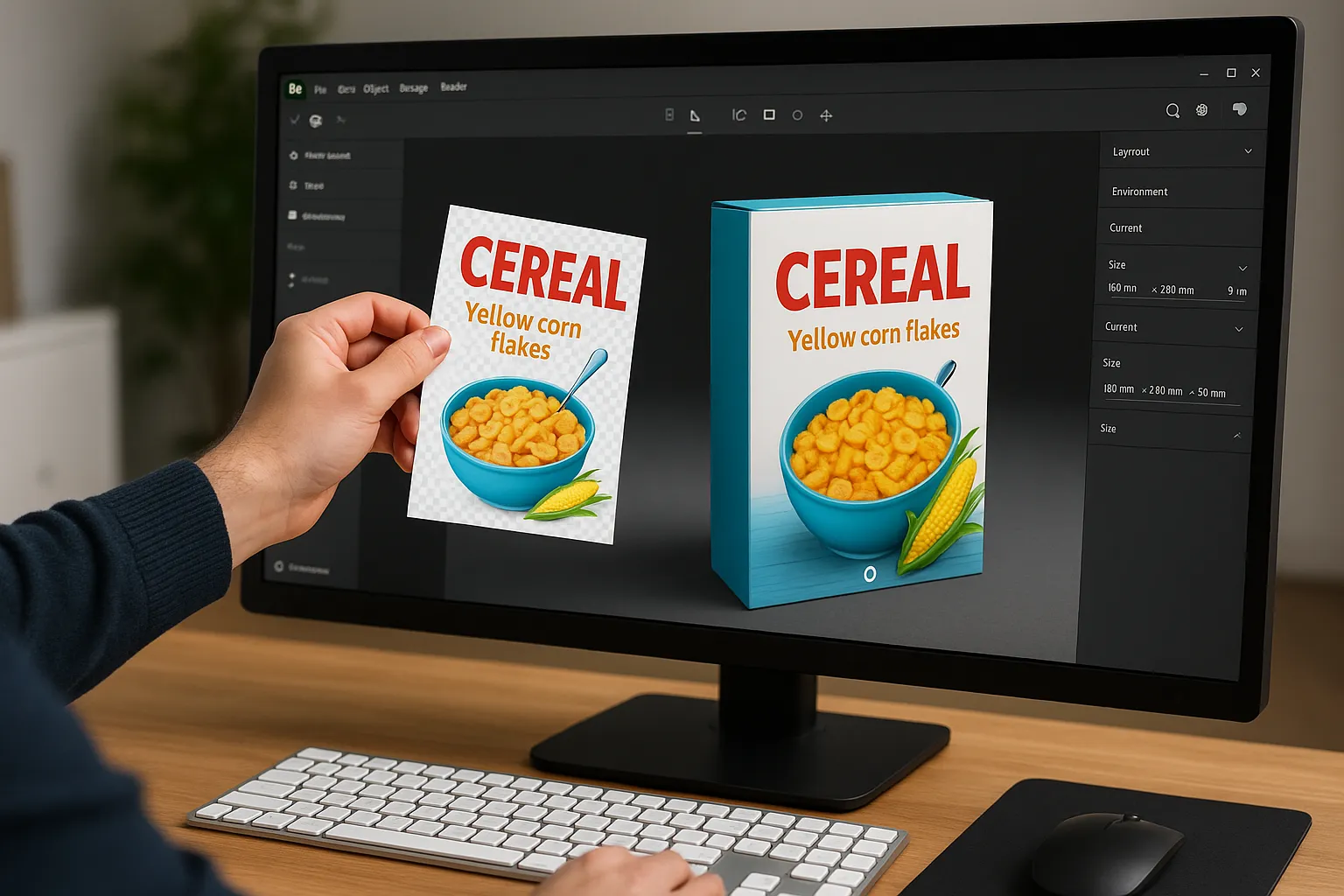

• Drop your PNG file onto the front face—Dimension auto-unwraps UVs.
• Repeat for top and side if using separate artboards.
• Inspect seams at 200 % zoom; nudge offset sliders if necessary.
4 — Send Scene to Substance 3D Stager
• File › Open in Stager. Materials remain intact.
• Switch Renderer to Path Trace for physically accurate shadows.
• Check Adaptive Sampling to reduce fireflies.
5 — Set Lighting & Camera
• Studio HDRI › Softbox_4x4 generates even reflections.
• Rotate HDRI so key light grazes logo at 30°.
• Add Fill Light rectangle; intensity = 200 lux; color = #FFF3E6 for warm highlight.
• Enable Depth of Field; focus distance = front panel; aperture = 0.8.
6 — Render & Export
• Preset: Amazon Hero Image (2560 × 2560 px, PNG-24, alpha).
• Tick Include Object ID pass for Photoshop masking.
• Enable Denoise AI for clean edges at 256 samples.
7 — Batch Variations with Stager Scripts
• Window › Python Scripts › BatchSwapTextures.
• Point to folder of PNG labels named SKU-001.png, SKU-002.png.
• Script auto-renders all SKUs overnight; output naming follows CSV sheet.
8 — Export GLB & USDZ for 3D Viewers
• File › Export › GLB with Draco compression for WebAR (<15 MB).
• Use Apple Reality Converter to turn USD to USDZ for Quick Look.
• Upload to Shopify 3D Warehouse; enable View in Your Space.
Pro Tips & Automation
• Color accuracy : Calibrate monitor with X-Rite i1 Display Pro; enable Stager’s Color Management › Adobe RGB.
• Shadow catcher : Add ground plane with 10 % roughness to mimic studio sweep.
• 360° spins : Camera › Turntable Animation; 36 frames; export MP4 for Shopify.
• Review links : Share › Web; stakeholders annotate AR view in browser.
FAQs
Conclusion
By leveraging one-click projection in Dimension and path tracing in Stager, you can deliver studio-quality 3D packaging mock-ups faster than a physical prototype can ship. Implement this workflow, track click-through uplift, and iterate designs the same day. Have questions? Drop them in the comments, and share your success stories with the community.
